ACT Clutch and Flywheel Kits Legacy GT

SB5 600480

In stock

Model:

$1,174.00 $1,505.00

ACT offers several varieties of clutch kits for the 2005-2008 Subaru Legacy GT that provide increasing levels of WRX performance enhancement. Each level of ACT clutch has its purpose, and Celtic Motorsport can recommend an ACT package for your 05-08 Subaru Legacy GT based on the level of modification and purpose of the car. All ACT clutch kits for the 05-08 Legacy GT include a friction surface, a pressure plate, a throw-out bearing, and a alignment tool.

HD: Heavy Duty Pressure Plate
The ACT Heavy Duty Pressure Plate is an excellent combination of increased torque holding and pedal feel for most daily driven cars. The HD pressure plate provides 32% increase in clamp loading while creating only a moderate increase in pedal feel thanks to ACT's special, single diaphragm design.

MM: Modified Street Disc
420 ft/lbs torque
ACT's Modified Street friction surface is SFI certified and is an excellent choice for lightly modified, street driven cars. The MM disc provides quicker engagement than a stock surface and is quiet compared to other, more aggressive, friction surfaces. The sprung hub uses bushings and cone springs similar to OEM clutch disc; this creates frictional dampening which improves clutch life and reduces noise.

G6: 6-Puck Sprung Race Disc
537 ft/lbs torque
The ACT 6-Puck Sprung Hub Race Disc is SFI certified, so it is legal for all forms of racing that require SFI compliance. An ACT G6 race disc has a very durable friction surface with good spline life. The G6 was designed for a highly modified car that is drive to, on and from the track, as long as harsher engagement is acceptable. The sprung hub helps to reduce driveline shock and be relatively quiet compared to an unsprung hub, though the G6 can still be noisier than a full face disc and will have some chatter.

G4: 4-Puck Sprung Race Disc
537 ft/lbs torque
An ACT 4-Puck Sprung Hub Race Disc has very harsh engagement and is designed for road race cars only. A G4 friction surface has good durability and spline life characteristics under normal use. The sprung hub helps to reduce driveline shock and be relatively quiet compared to an unsprung hub but will definitely have chatter. The ACT G4 is SFI certified, so it is legal for all forms of racing that require SFI compliance. Celtic Motorsport does not recommend the G4 for a street driven car.

R6: 6-Puck Solid Race Disc
537 ft/lbs torque
The reduced inertia of the ACT 6-Puck Solid hub allows for very fast shifts at the expense drivability. An ACT R6 race disc friction surface has very good durability but will have shortened spline life. ACT designed the R6 for a highly modified track cars where harsher engagement is expected and some clutch chatter is not a problem. The 6-puck layout of the R6 will absorb, and dissipate, more heat than a 4-puck unit. The ACT 6-Puck Solid Hub Race Disc is legal for all forms of racing that require SFI compliance. Celtic Motorsport does not recommend the R6 for any road going car.

R4: 4-Puck Solid Race Disc
537 ft/lbs torque
The ACT 4-Puck Solid Hub Race Disc is legal for all forms of racing that require SFI compliance. The biggest benefit of the ACT 4-Puck Solid Hub Race Disc is its extremely fast shifts thanks, in part, to its reduced inertia. An ACT R4 race disc friction surface has good durability but will have shortened spline life. ACT designed the R4 for a heavily modified drag race or road race cars where extremely harsh engagement and clutch chatter is expected. Celtic Motorsport does not recommend the R4 for any road going car.

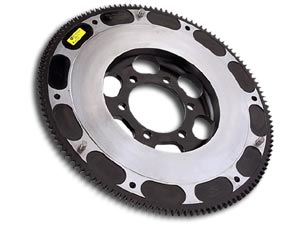

ACT Streetlite Steel Flywheel:
Material: Chromoly Steel
Weight: 14.4 lbs
The ACT Streetlite flywheel is made from premium quality forged Chrome-Moly steel, CNC machined, and balanced. It also features an induction-hardened integral ring gear, and is durable and thick enough to be resurfaced. The ACT Streetlite flywheel is perfect for the daily driver or street driven WRX! Certified to SFI Specification 1.1.

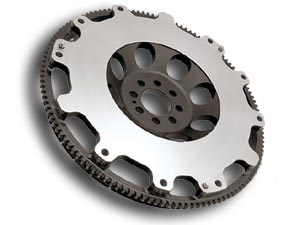

ACT Prolite Steel Flywheel:
Material: Chromoly Steel
Weight: 10.1 lbs
The ACT Prolite flywheel is made using the same premium quality, forged Chrome-Moly steel unit, that is CNC machined, and balanced. The Prolite flywheel has more material removed from the outer rim than the Streetlite to get it down to it's super-light, CEL causing 10.1lbs. ACT's Prolite flyweel will cause a check engine light. If you are planning to drive your car on the street, in traffic, you do not want this light of a flywheel. The Prolite is a RACE ONLY flywheel. The Prolite also features an induction-hardened integral ring gear, and is durable and thick enough to be resurfaced. Certified to SFI Specification 1.1.

Chose model from the pull down menu.

Note: Included on the flywheel is a black spacer ring that is to be UTILIZED with this clutch kit. Do NOT disassemble.

Model

SB5-HDMM/600480 - HD - Street Modified Disc w/Streetlite, SB5-HDR6/600480 - HD - RACE ONLY - 6-Puck Solid w/Streetlite, SB5-HDMM/600475 - HD - Street Modified Disc w/Prolite, SB5-HDG4/600475 - HD - Street/Strip - 4-Puck Sprung w/Prolite, SB5-HDR4/600475 - HD - RACE ONLY - 4-Puck Solid w/Prolite, SB5-HDG4/600480 - HD - Street/Strip - 4-Puck Sprung w/Streetlit, SB5-HDR4/600480 - HD - RACE ONLY - 4-Puck Solid w/Streetlite, SB5-HDG6/600475 - HD - Street/Strip - 6-Puck Sprung w/Prolite, SB5-HDR6/600475 - HD - RACE ONLY - 6-Puck Solid w/Prolite
