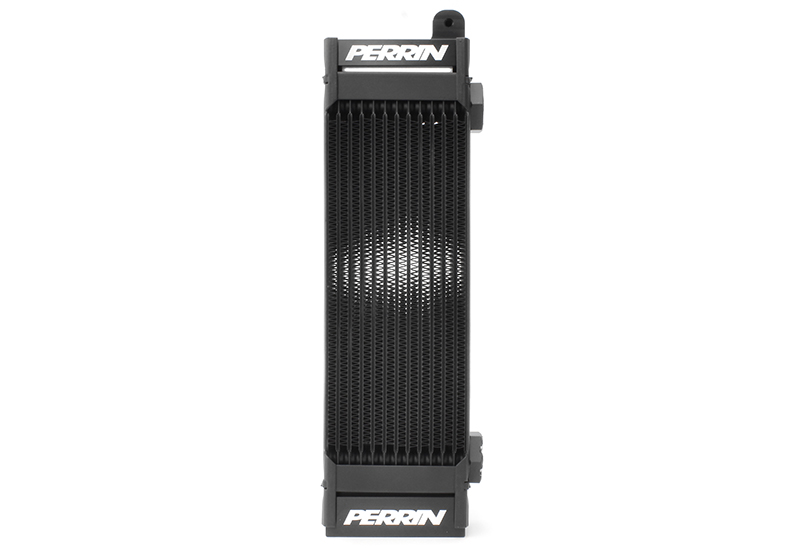

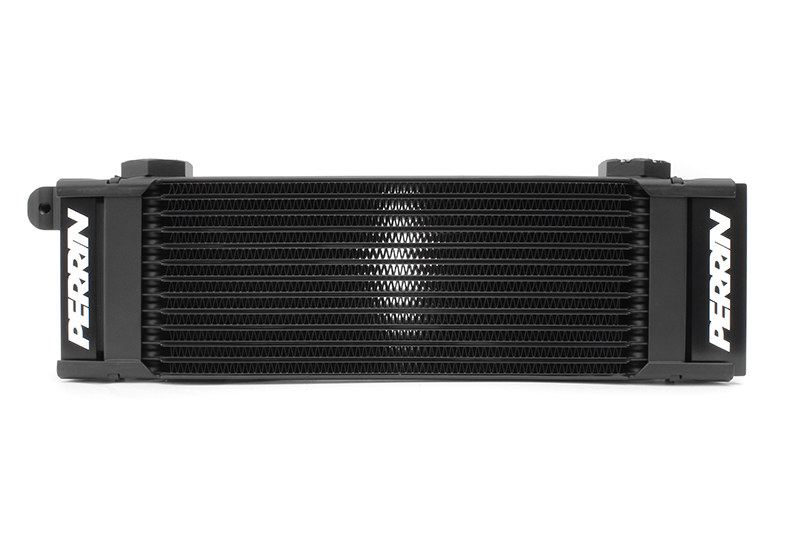

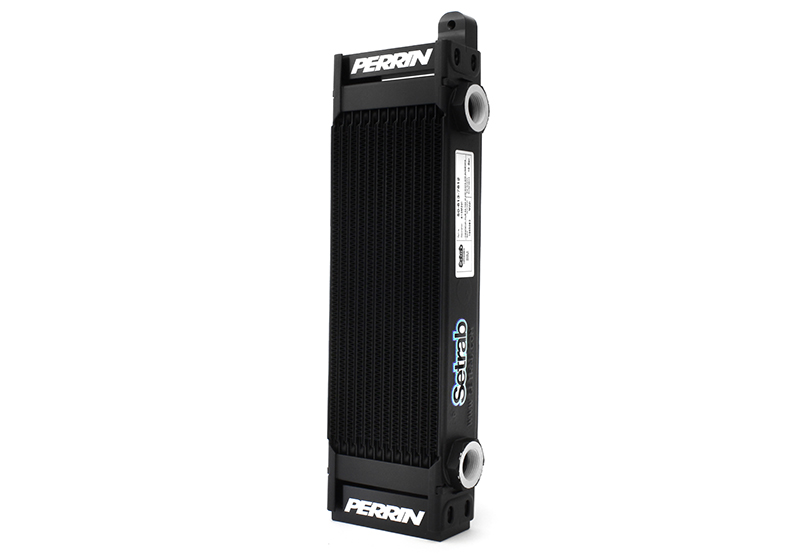

Each PERRIN oil cooler uses a Setrab core which maximizes heat dissipation without pressure build-up. Oil-ways are interspaced with airway corrugations providing optimum heat transfer, while the oil passages use "turbulators" to break down boundary layer effects in the oil flow.
Setrab Oil Coolers employ an in-line turbulator to gently stir the fluid being cooled, thereby ensuring that the fluid has exposure to the entire internal surface area of the oil cooler with the least pressure lost. The turbulators are fully brazed to the entire internal length of the tube resulting in zero heat transfer barrier and high strength.
Integrated Thermostat

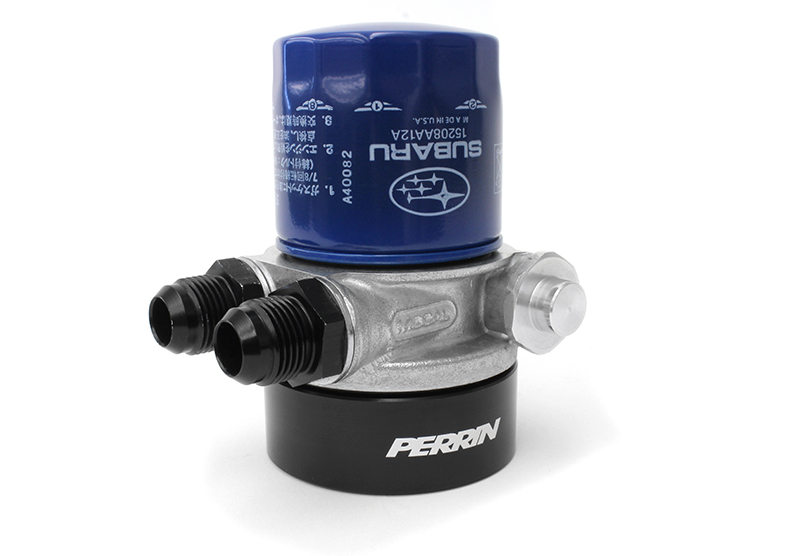

The PERRIN Performance filter adapter features an integrated 85°C (185°F) thermostat. This means oil will not start flowing through the oil cooler until oil temps reach an optimum temperature of 85°C.
In addition to the OEM oil filter from Subaru, we include a PERRIN spacer which allows for easier installation of the thermostat-filter assembly and increased clearance for the hoses over the headers.

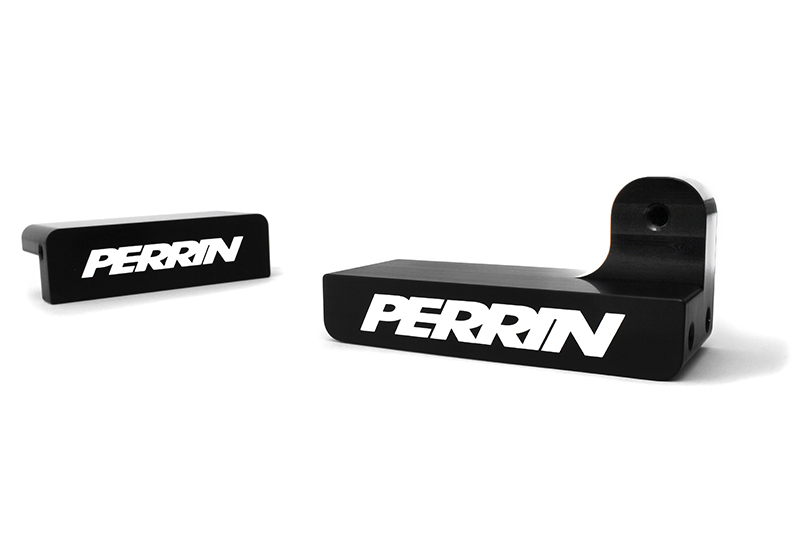

Mounting Brackets

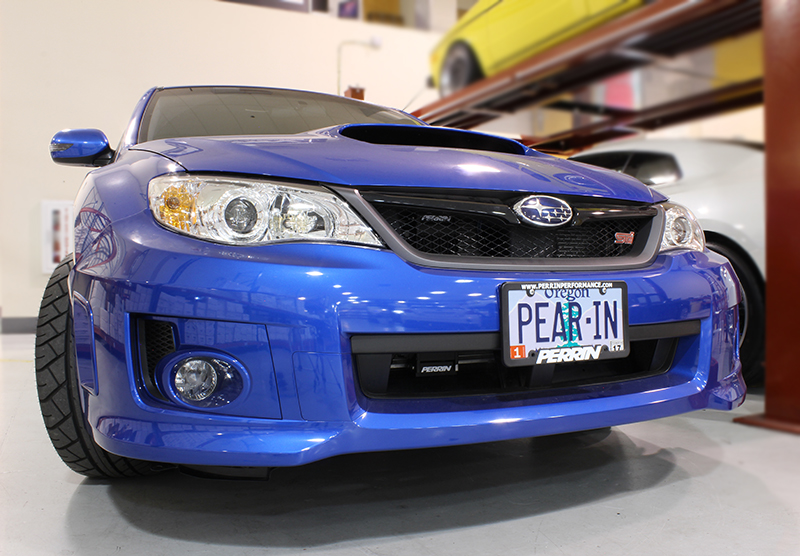

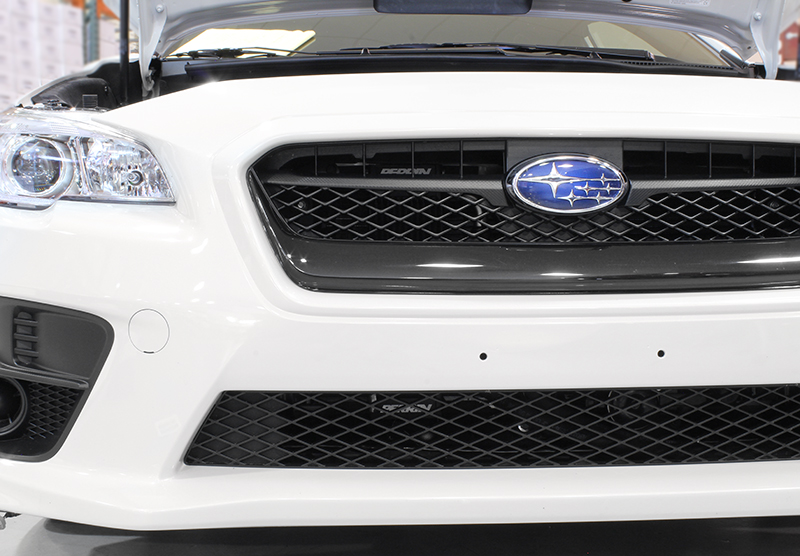

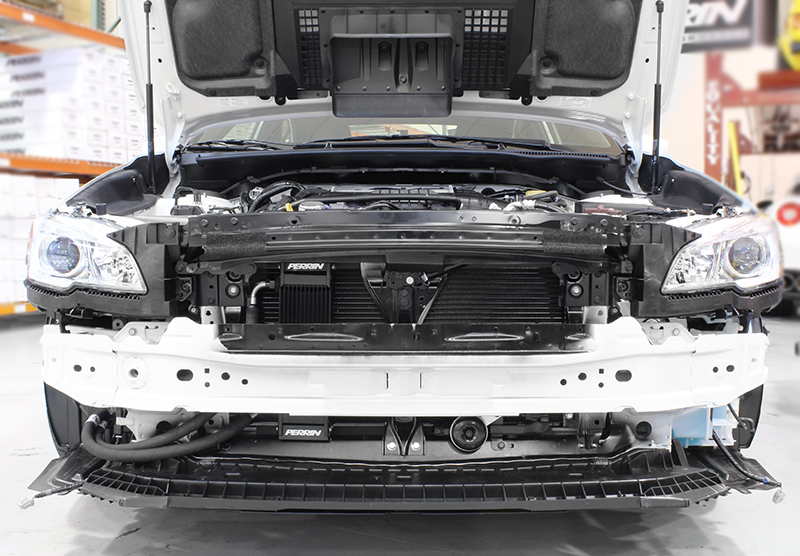

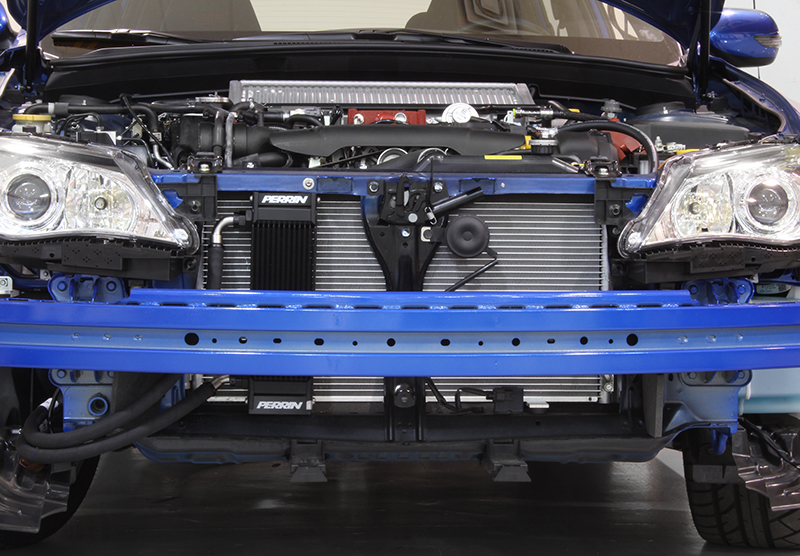

The PERRIN Oil Cooler comes with custom brackets that allow the cooler core to mount directly to existing holes in the OEM frame of your vehicle. Made from CNC machined 6061 T6 aluminum, the brackets look sleek and stylish while blending seamlessly behind your bumper.

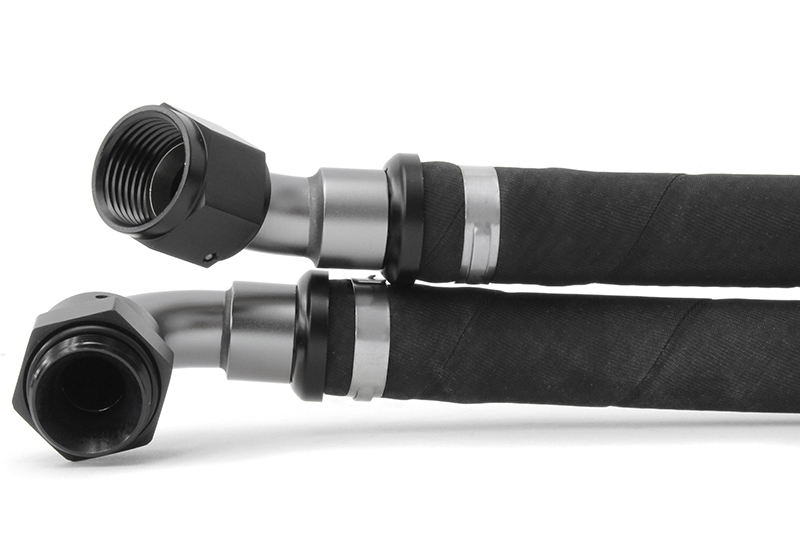

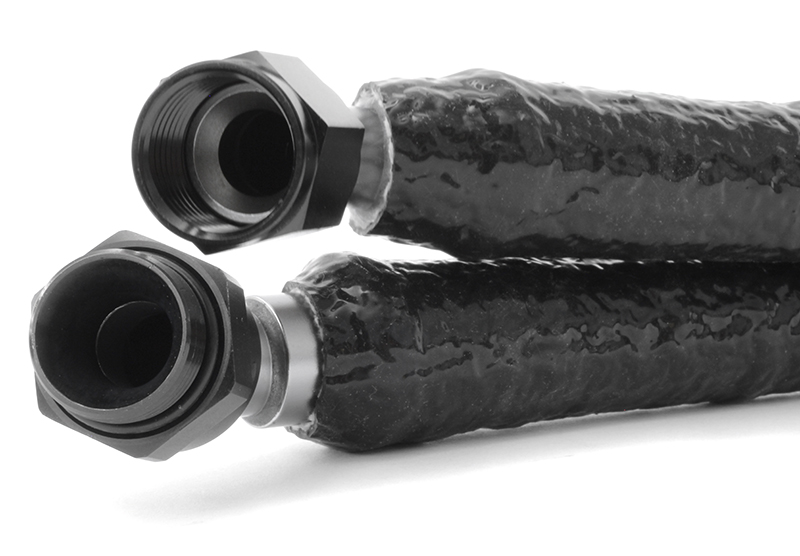

Preassembled hoses
PERRIN's STI/WRX oil cooler kit uses lightweight Aeroquip brand -10 hose that is rated for 250psi and 300°F continuous temperature. Each hose consists of anodized -10 push-lock type aluminum hose ends. These fittings are designed to fit without the need for clamps, but we take the extra step and add a clamp ensuring they will never come apart. Unlike other kits that make you assemble your hoses, PERRIN preassembles them for you!
5 Year Warranty
PERRIN Performance warrants to the original purchaser that all PERRIN products will be free from defects in material and workmanship within a sixty (60) month period from the date of purchase. *Some exclusions apply

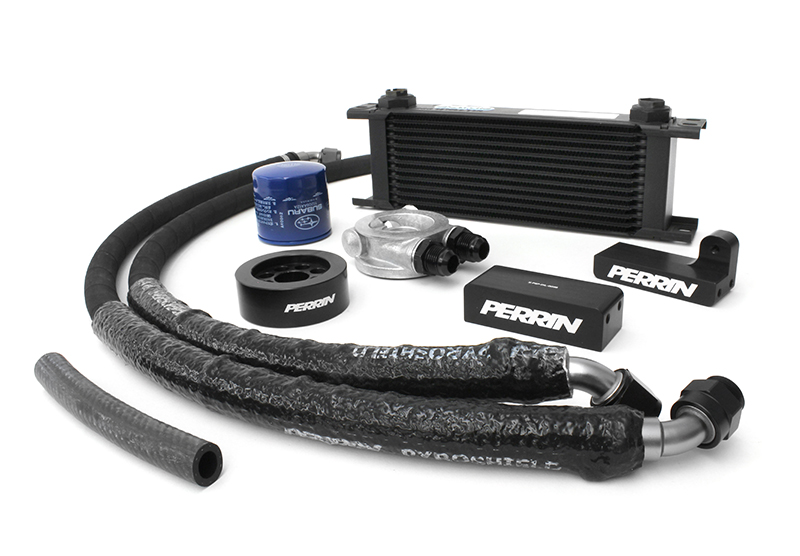

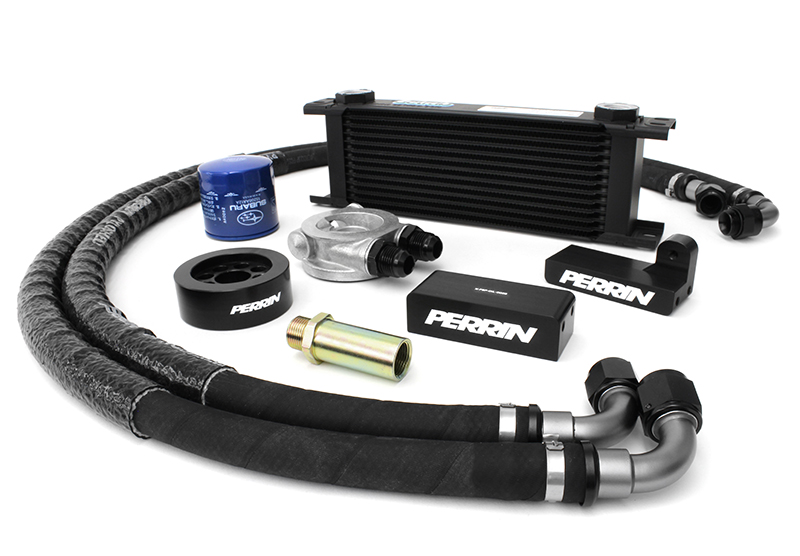

In The Box
(1) Oil Cooler Core
(2) Preassembled High Pressure Oil Lines
(2) Brackets

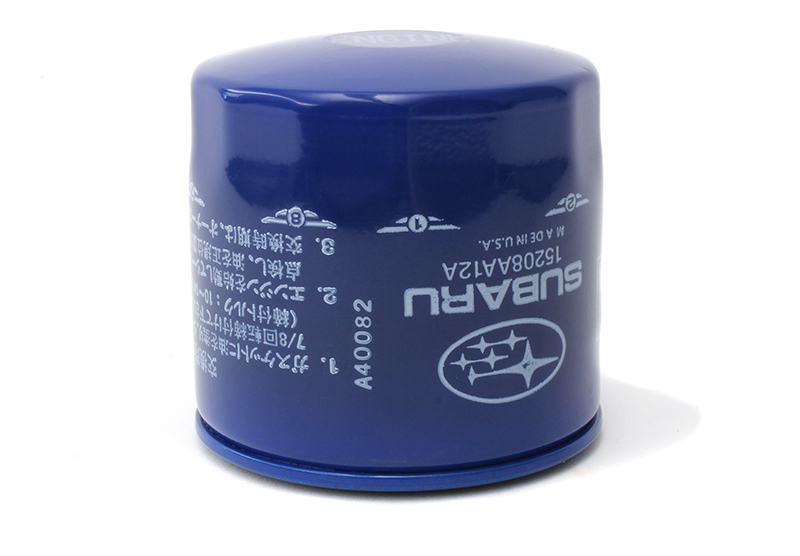

(1) OEM Oil Filter
(1) Oil Filter Spacer
(1) Oil Cooler Thermostat Sandwhich Adapter
Required Mounting Hardware
Instructions
(1) PERRIN License Plate Frame
